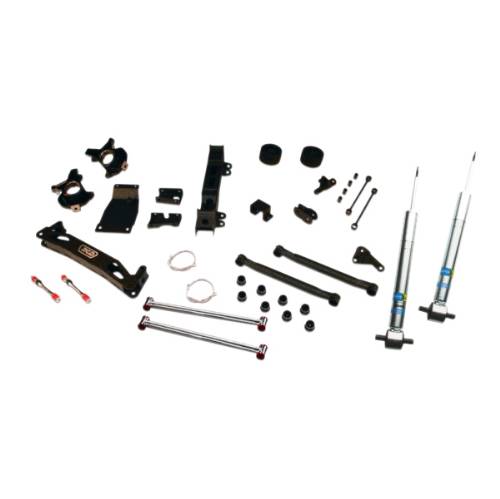

Chevrolet/GMC Silverado/Sierra 1500 4"-6" Suspension Lift Kit This RCD suspension will allow the use of up to a 35″ diameter tire.
Please note, factory wheels and larger than stock tires cannot be used
with this RCD “Knuckle” style suspension lift. Aftermarket 17″ wheels
with 4.50″ inches of back space are recommended. Larger diameter wheels
with a small increase in wheel back space can also be used. For
instance, a 20″ diameter wheel with 4.75″ inches of back space will
work. Any wheel diameter having in excess of 4.50″ inches of back space
should be properly test fit and necessary tire/wheel to suspension and
steering component clearance verified before the vehicle is driven. For
more information on this or any other RCD Suspension product please
click on the “ask a question” link located at the very top of this page.
- CNC machined replacement cast iron steering knuckles
- Zinc plated billet steel “Super-Flex” sway bar end links
- Extended DOT Approved Brake Hoses
- No drive shaft modifications necessary for installation
- Block & Add-A-Leaf Rear Lift
- Includes Bilstein 5100 Series Shocks
Notes:
Will NOT work with Air Ride or Electronic Suspension Systems.
Will NOT work on vehicles equipped with rear steering.
Recalibration of the speedometer, ABS and stability control systems will be required.
Must enlarge lower control arm sway bar end link mounting hole to 3/4”.
Some models may require an exhaust modification to clear the front driveshaft.
Max Tire Size:
33" x 12.5" no modifications
35" & larger x 12.5" require minor bumper and fender trimming
Backspacing:
16" x 8" - 4.5" backspacing
17" & larger x 8" - 4.625" backspacing
For vehicles with Strut Style Front Suspension ONLY
Vehicle Application:
2007-2014 Chevrolet Silverado 1500 6Lug 2WD
2007-2014 GMC Sierra 1500 6Lug 2WD
