Dodge Ram 2500/3500 4”-5” Suspension Lift Kit
Dodge has come a long way over the years, continuing to improve both its
quality and strength. The late model 8 lug platform has become a
mainstay with truck consumers, especially with the Cummins Diesel crowd.
The ever popular solid axle front end continues to perform well and
lend itself to be modified with a plethora of aftermarket products. RCD
Suspension has utilized its high quality design and manufacturing
capability to produce a system that both rides and performs whether on
the street or in the dirt. 94-02 1500 & 2500 4wd solid axle vehicles
get a “long arm” style system, while the 03-08 2500 4wd utilizes a
similar system in a short arm kit.

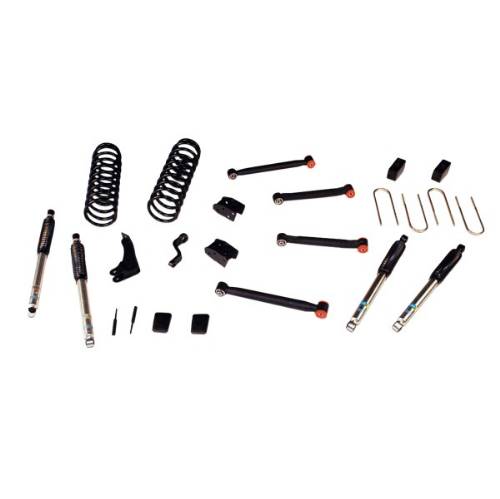

Kit Includes:
(2) progressive rate coil sprins
Replacement upper & lower links with polyurethane encased flex joints
Front track bar and upper link relocation brackets
Replacement forged pitman arm
Sway bar drop down brackets
Rear lift blocks
Bilstein 5100 shock absorbers
Notes:
Will NOT work with Air Ride or Electronic Suspension Systems.
Recalibration of the speedometer, ABS and stability control systems will be required.
Actual lift height will vary based on engine and chassis
combinations. Some instances may require additional rear lift and/or
Ubolts.
Single Rear Wheel only/non-dually.
Must select appropriate pitman arm to complete the kit installation.
Max Tire Size:
35" with minor bumper and fender trimming
Backspacing:
17" & larger x 9" - 4.5" backspacing
Vehicle Application:
2003-2013 Dodge Ram 2500 8Lug 4WD
2003-2013 Dodge Ram 3500 8Lug 4WD
