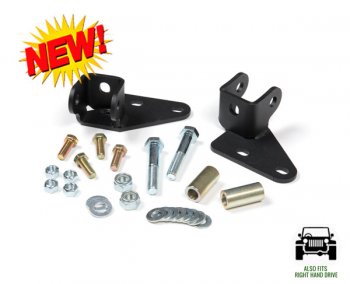

Shock Relocation
brackets rotate the lower bushing mount position 90 degrees from factory
which allow the shock bushings to move in a more natural rotation and
not rely as much on the bushing misalignment. This means more bind-free
movement during maximum axle articulation. Once relocated, the upper
shock stem alignment will be more neutral when used with suspension
systems of 4" lift or greater.
Shifting the lower mount outboard
approximately 2" also creates more clearance between the frame and shock
body. This is especially beneficial when running larger body
aftermarket shocks and taller, high-articulation suspension systems
where the shocks mounted in the stock location can hit the frame.
This
bracket maintains the same dual-shear design as the factory mount and
is dimensionally the same so any aftermarket shock designed for the JK
will fit.
Features:
- Bolt On Installation
- Black, Powder Coated Finish
- Shock Mount Width
1.60"
- Shock Bolt Diameter 12mm
- Brackets Made From 3/16" Steel
- Minor
Drilling Required
- Relocates the front shocks further ourboard at the axle
- "Bind Free" shock movement during articulation
- CNC laser cut/formed
