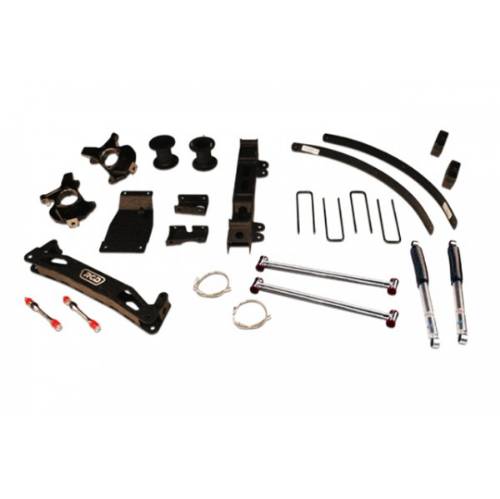

Chevrolet/GMC 4"-6" Lift Kit w/Bilstein 5100 Series Shocks, IFS 6Lug 4WD 2007-2010

• CNC Machined Replacement Cast Iron Steering Knuckles for Precise Steering Geometry
• Fully Machined, T-6 Billet Aluminum Axle Spacers Maintain Proper Axle Lengths
• Heavy Duty Two Piece Lower Sub-Frame Assembly and Polished Stainless Steel “Twin -Link” Anti-Compression Struts Insure Structural Strength and Durability
• CNC Machined, Zinc Plated Billet Steel Sway Bar Links with Over-Size Urethane Bushings Optimize Sway Bar Geometry and Function
• RCD “Gator Black” Polyurethane Powder Coat Finish for Lasting Good Looks
• Grade 8 Hardware for Reliability
• Braided Stainless Steel Front Brake Lines
• Utilizes Factory Front Struts By Adding Upper Strut Spacer (Optional Bilstein 5100 6″ Struts Replace Spacers)
• Two Rear Custom Matched Bilstein Monotube Gas Pressure Shocks for Maximum Performance and Ride Characteristics

Notes:
No drive shaft modifications necessary.
Do NOT use wheel spacers.
Front end realignment is necessary.
Recalibration of the speedometer, AMS and stability control systems is required.
Must enlaarge lower control arm sway bar end link mounting hole to 3/4".
Brake system will need to be bled by a professional brake technician.
System is designed to work with factory Stabilitrac systems.  Stabilitrac systems may be more sensitive than stock.
System will not work on vehicles with electronic or air ride suspension systems.
Use of a body lift with this kit is NOT recommended.
Special toods required for removal and installation of the ball joints and tie rods.

Max Tire Size:
33" x 12.5" w/no modifications
35" & larger x 12.5" require minor bumper and fender trimming
Back Spacing: 4.5"

Vehicle Application:
2007-2010 Chevrolet Silverado 1500 6Lug IFS 4WD
2007-2010 GMC Sierra 1500 6Lug IFS 4WD
