Chevrolet/GMC Blazer/Jimmy 4" System with Rear Options 1969-1972

BDS Suspension Chevy/GMC Blazer/Jimmy 4" System with Rear Options 1969-1972

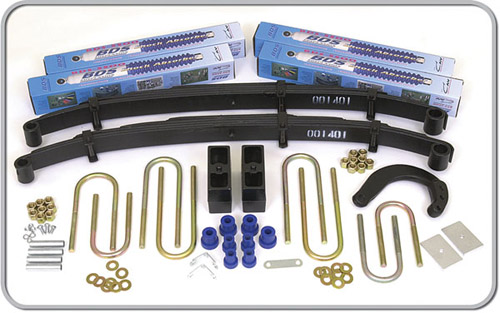

This kit comes with new front Glide-Ride leaf springs. These spring feature bolt style leaf alignment clamps, anti-friction pads, and tapered leafs. The box kit includes new u-bolts, urethane spring bushings, and brake line relocation brackets. The kit also includes a 4" steering arm. The rear kit includes choice of tapered lift blocks and new u-bolts, tapered lift blocks with long thin add-a-leaf and new u-bolts, or new rear Glide-Ride leaf springs and new u-bolts.

Note:
This sytem will only work on vehicles with a 3-bolt steering arm to knuckle mounting system.
If vehicle is equipped with a front anti sway bar, a sway bar drop bracket is available.
Although unusual, if any drive line vibration is experienced there is a transfer case drop kit available in the accessories section.

Estimated Install Time: 5 hours
Max Tire Size: 33 x 12.50
Wheel Backspacing: 3.5"

Vehicle Application:
1969-1972 Chevy Blazer 1500 4WD
1969-1972 GMC Jimmy 1500 4WD

Installation Instructions - PDF Download
