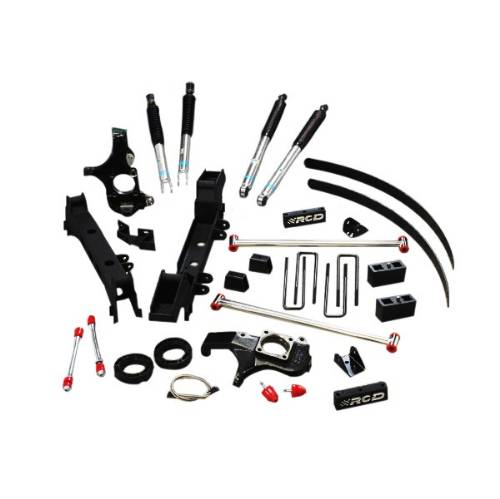

Chevrolet/GMC Pickup/Suburban 4.5"-6" Lift Kit w/Bilstein 5100 Series Shocks, IFS 8Lug 4WD 1988-1999

• CNC machined replacement cast iron steering knuckles
• T-6 billet aluminum axle spacers
• Zinc plated billet steel “Super-Flex” sway bar end links
• No drive shaft modifications necessary for installation
• Includes Bilstein 5100 Series Shocks

Notes:
Will NOT work with Air Ride or Electronic Suspension Systems.
Will NOT work on vehicles equipped with spindle mounted ABS sensor.
Recalibration of the speedometer, ABS and stability control systems required.
Must enlarge lower control arm sway barn end link mounting hole to 3/4".
Some models may require exhaust modification to clear the front driveshaft.
Vehicles equipped with two piece rear drive shaft may require part #20-68747 Drive Shaft Support Drop Down Bracket for the factory carrier bearing.
Other rear driveline modifications may be required.

Max Tire Size:
33" x 12.5" no modifications
35" & larger x 12.5" requires minor bumper and fender trimming
Backspacing:
16" x 8 - 4.5" backspacing
16.5" & larger x 8" - 4.75" backspacing
