Dodge Ram 1500 4" Suspension Lift Kit 4WD 2009-2018

Dodge Ram 1500 4" Suspension Lift Kit 4WD 2009-2018

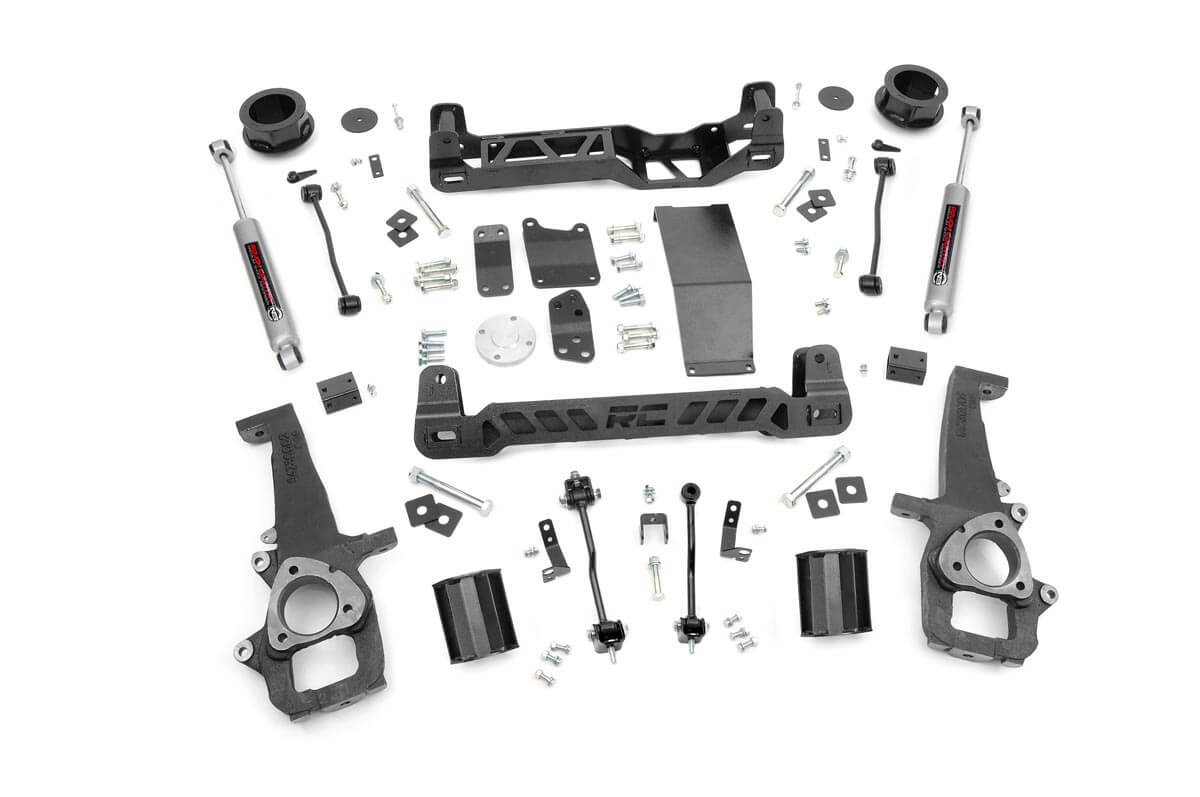

Kit Contains:
Front: Lifted knuckles, strut spacers, front & rear crossmembers, differential drop brackets, driveshaft spacer, sway bar links, skid plate and hardware.
Rear: Upper coil spacers, sway-bar links, brake line brackets, bump stop brackets and hardware
Shocks: (2) Rear N3 series shocks.

Benefits:

• Increased ground clearance.
• Maintains factory ride quality.
• Levels front of the vehicle with the rear.

Note:
Kit is not recommended for AWD models.
TRX models will achieve approximately 1" of additional lift.
Does NOT fit models with factory air ride suspension.
Requires 20" or larger wheels! Does NOT fit 18" or smaller wheels.

Estimated Install Time: 4-6 hours
Max Tire Size: 35 x 12.50 R20
Wheel Backspacing: 5.5"

Vehicle Application:
2009-2018 Dodge Ram 1500 4WD

Optional Equipment:
Kicker Bars - Add rigidity to the front crossmember assembly, highly recommended for aggressive off-road use.
0.25" Wheel Spacers - Allows use of factory wheels

Installation Instructions - PDF Download (2009-2011)
Installation Instructions - PDF Download (2012-2017)
