Dodge Ram 1500 6" Suspension Lift 4WD 2009-2011

Dodge Ram 1500 6" Suspension Lift 4WD 2009-2011

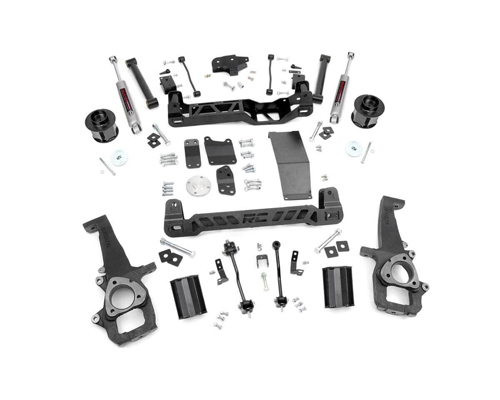

Kit Contains:
Front: Lifted knuckles, strut spacers (or optional lifted struts), front & rear crossmember, differential drop brackets, driveshaft spacer, sway bar links, skid plate and hardware.
Rear: Coil spacers, fixed upper control arms, sway bar links, track bar bracket, bump stop brackets, brake line brackets and hardware.
Shocks: (2) Rear N3 series shocks

• Control arms allow for proper driveshaft angle.
• Control arms feature Clevite brand OEM style rubber bushings.

• Factory tuned coil springs maintain stock ride quality.
• Increased ground clearance.
• Levels front of the vehicle with the rear.

Note:

• Kit is not recommended for AWD models.
• "TRX" models will achieve approximately 1" of additional lift.
• This lift is not recommended for use on the TRX models due to possible CV shaft vibration caused by the additional lift. - Consider our 4" lift system for about 5" of lift or replace the TRX struts with standard struts for use with this system.
• Requires 20" or larger wheels! Does NOT fit 18" or smaller wheels.
• SKU: 329S includes Front Upper Strut Spacers
• SKU: 329.23 includes N2.0 Lifted Front Struts

Estimated Install Time: 7-8 hours
Max Tire Size: 37 x 12.50 R20
Wheel Backspacing: 5.5"

Vehicle Application:
2009-2011 Dodge Ram 1500 4WD

Options:
Kicker braces - Add rigidity to the front crossmember assembly, highly recommended for aggressive off-road use.
0.25" Wheel spacers - Allow ability to run factory 20" wheels with 35x12.50 tires.  May require light grinding of knuckle to provide adequate clearance.

Installation Instructions - PDF Download (2009-2011)
