Dodge Ram 1500 Mega Cab/2500/3500 3" Front 2" Rear Lift Kit 4WD 2003-2007

Dodge Ram 1500 Mega Cab/2500/3500 3" Front 2" Rear Lift Kit 4WD 2003-2007

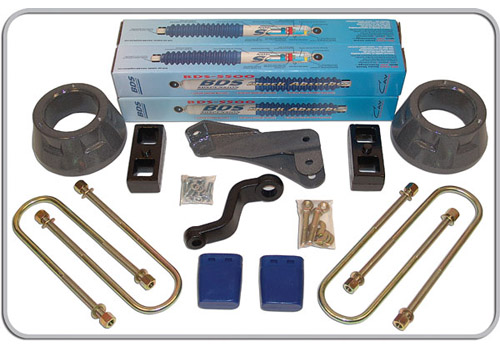

This kit comes with two cast aluminum upper coil buckets. These buckets bolt solid to your upper coil pocket giving you 3" of lift while maintaining your factory ride quality. The box kit includes a track bar relocation bracket, extended urethane bump stops, and a pitman arm for steering correction. The rear is lifted via a 2" block and u-bolt kit.

Note:
This system will also work on Mega Cab models
These vehicle were manufactured with three different diameter rear axles. You will need to measure the diameter of your rear axle before ordering. It should be 3-1/2", 3-7/8", or 4-1/8" in diameter.
Rear U-Bolts will not fit dually applications.
Not recommended for Power Wagon models.

Estimated Install Time: 4 hours
Max Tire Size: 33 x 12.50
Wheel Backspacing: 4"

Vehicle Application:
2006-2007 Dodge Ram 1500 Mega Cab 4WD Gas
2003-2007 Dodge Ram 2500 4WD Gas/Diesel
2003-2007 Dodge Ram 3500 4WD Gas/Diesel

Installation Instructions - PDF Download
