Dodge Ram 2500/3500 4-Link Conversion Kit 2014-2015 4WD

BDS Suspension

Price: $948.70

Part #:	BDS122404-012403
Shipping Weight:	65 lb.

Tell a Friend About This Product

SummaryCustomer ReviewsCustomer Questions

Dodge Ram 2500/3500 4-Link Conversion Kit 2014-2015 4WD

Designed to fit 2014-2015 RAM 2500 and 2013-2014 RAM 3500 4WD trucks this 4-link conversion improves drivability and control across all terrains on road and off. This kit allows late model radius arm equipped RAMs running 4"-8″ of lift to convert over to the BDS 4-link long arm for added strength and more consistent caster throughout wheel travel for improved handling.

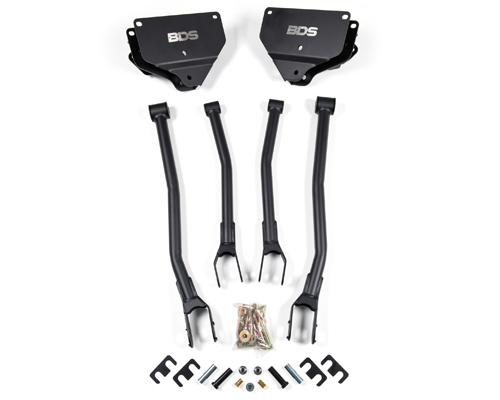

The kit includes all the necessary components to replace the factory (or aftermarket) radius arm setup to a 4-link design. The heart of the 4-link upgrade is a pair of massive frame-mounted brackets precision welded and engineered to position the new upper and lower control arms for optimal suspension geometry on late model RAM HD trucks. The 4-link brackets are fabricated from 1/4″ thick steel and wrap around the frame as well as key off the factory radius arm brackets to create an extremely sturdy mount for the new arms. Removal of the factory radius arm brackets is not required allowing the brackets to stay intact to speed up the installation time. The frame mounts are finished in a durable textured black powder coating and badged with a stainless steel BDS nameplate.

The upper and lower control arms are built from 2″ OD x 3/16″ wall DOM tubing for the strength to take any abuse you can throw at them. They utilize large 2.5″ OD polyurethane bushings to isolate road vibrations and are formed inward to allow for extra tire clearance while repositioning the front axle slightly forward for increase tire clearance to the backside of the front fenders to improve clearance when turning. These arms are finished in a durable textured black powder coating and use grease fittings for easy servicing. Combined with your current 4-8″ lift, this new 4-link conversion system is designed to improve your late model RAM HDs overall performance, comfort and driveability.

Vehicle Application:
2014-2015 Dodge Ram 2500 4WD

2013-2014 Dodge Ram 3500 4WD

Note:
Designed for use on vehicles equipped with 4"-8" of suspension lift.

Installation Instructions - PDF Download
