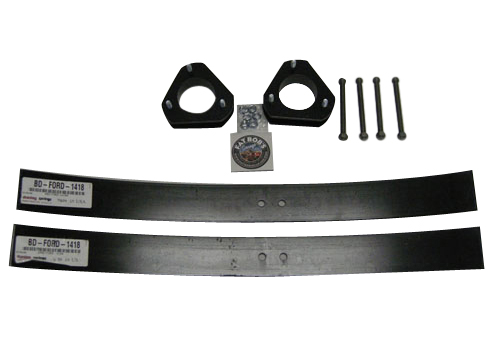

Ford F150 3" Front 2" Rear Lift Kit 2004-2016

• 1/4" Hot P.O. Steel Plate is precision CNC LASER cut.
• Heavy Wall Tubing for a superior load bearing member to ensure maximum stability.
  Note:  The spacers measure 1.75" and provide 3" of lift. (NOT a 1:1 ratio)
• Pressed In Studs, where others use welded bolts that lose strength when welded.
• Pulsed Welding produces an aerospace grade weld that is of a much higher quality than the short arc weld found on similar products.
• Powder Coating that has been specially formulated for this product application.  Paint just won't cut it!
• OEM Flange Lock Nuts are included with every kit to ensure a proper torque specifications can be met on install.
• Illustrated Instructions are included with every kit to help with a quick and easy install.
• Allows for up to 33" tires to fit on 2WD models. Allows for up to 35" tires to fit on 4WD models.  **Up to 33" tires on 2009+ models.
• Stock shocks can be used.  No additional modification to the truck is necessary.
• LIFETIME WARRANTY.  Made in the USA.
• NO Spring Compressor Required.  Easily bolts on to stock strut mounts.  A floor jack, two jack stands, and normal shop tools are all you need for installation.
• Installs in 2-3 Hours.
• We install, develop, and test these kits and have full time tech support available if needed.

Vehicle Application:
2004-2016 Ford F150 2WD

2004-2008 Ford F150 4WD (not recommended for 2009-2016 4WD see part 22200)

Installation Instructions - PDF Download (Front)

Installation Instructions - PDF Download (Rear)
