Ford F150 6" Fox Performance Coil Over System 2WD 2014
BDS Suspension
Rear Lift Options:
5" Block
4" Block
E-Brake Bracket:
No Thanks
Yes + $13.66
Rear Driveshaft Spacer:
No Thanks
Yes + $80.72
Price:
$4,103.75
Part #:
BDS1505F-5"Block
Shipping Weight:
296.39 lb.
Tell a Friend About This Product
Summary
Customer Reviews
Customer Questions
Options
Ford F150 6" Fox Performance Coil Over System 2WD 2014

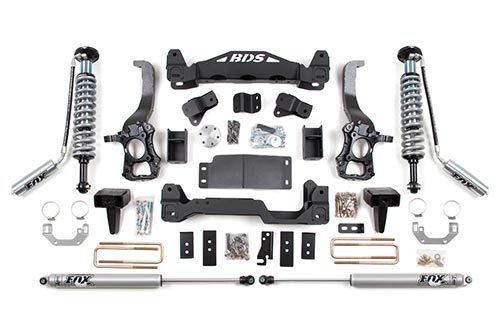

Features Fox 2.5" coil over remote reservoir shocks. Kit includes CNC machined steering knuckles to return steering to factory geometry with lift. Once piece front & rear high clearance crossmembers increase rigidity and ground clearance. A 1/4" thick steel differential skid plate ensures offroad protection. New front strut spacers are easy to install without the need to disassemble the struts and maintain OE ride quality. Rear is lifted with a new 5" block and a new offset spring plate the center the rear axle.
Tire & Wheel Combination:
37" x 12.50" w/18 x 9 and 5" backspacing
35" x 12.50" w/18 x 9 and 5-5.5" backspacing
37" x 12.50" 2/20 x 9 and 5-5.5" backspacing
Estimated Install Time: 8-10 hours
Notes:
18" or larger diameter wheels required. Stock 17" & 18" wheels can NOT be reinstalled. Stock 20" wheels can be used with up to 305/60-20 tires.
E-brake bracket required for factory powersteps.
Block kit replaces factory block.
For level to tail low appearance use #013429.
Models with a 2 piece rear driveshaft may require carrier bearing drop shim kit #122405.
This kit is FMVSS No.126 Compliant.
Vehicle Application:
2014 Ford F150 2WD
Installation Instructions - PDF Download
There are currently no reviews of this product.
Submit a Review
There are currently no questions about this product.
Ask a Question
Options
Part #
Price
Weight
Rear Lift Options: 5" Block; E-Brake Bracket: No Thanks; Rear Driveshaft Spacer: No Thanks
BDS1505F-5"Block
$4,103.75
296.39
Rear Lift Options: 5" Block; E-Brake Bracket: No Thanks; Rear Driveshaft Spacer: Yes + $80.72
BDS1505F-5"Block-123609
$4,103.75
299.39
Rear Lift Options: 5" Block; E-Brake Bracket: Yes + $13.66; Rear Driveshaft Spacer: No Thanks
BDS1505F-5"Block-123018
$4,103.75
297.89
Rear Lift Options: 5" Block; E-Brake Bracket: Yes + $13.66; Rear Driveshaft Spacer: Yes + $80.72
BDS1505F-5"Block-123018-123609
$4,103.75
300.89
Rear Lift Options: 4" Block; E-Brake Bracket: No Thanks; Rear Driveshaft Spacer: No Thanks
BDS1505F-4"Block
$4,103.75
274.19
Rear Lift Options: 4" Block; E-Brake Bracket: No Thanks; Rear Driveshaft Spacer: Yes + $80.72
BDS1505F-4"Block-123609
$4,103.75
277.19
Rear Lift Options: 4" Block; E-Brake Bracket: Yes + $13.66; Rear Driveshaft Spacer: No Thanks
BDS1505F-4"Block-123018
$4,103.75
275.69
Rear Lift Options: 4" Block; E-Brake Bracket: Yes + $13.66; Rear Driveshaft Spacer: Yes + $80.72
BDS1505F-4"Block-123018-123609
$4,103.75
278.69
