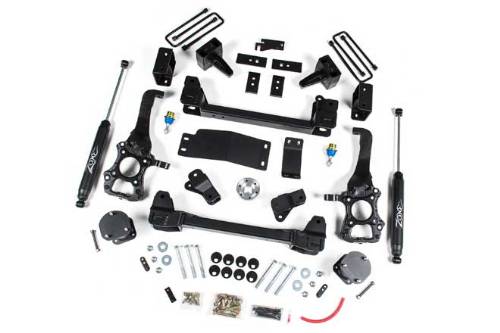

Ford F150 6" Suspension System 4WD 2015-2016

• Front and rear heavy duty 1-piece lower control arm crossmembers
• Massive ductile cast iron steering knuckles
• Full differential relocation bracket system included to properly correct CV shaft angles
• Includes bolt-on strut spacers - strut disassembly not required
• New eccentric cam bolts included for easy alignment
• Includes sway bar relocation brackets to acheive optimum position for sway bar
• 1/4" thick differential skid plate included
• 5" Rear Blocks with integrated bump stop wings to acheive a more level stance
• Rear Hydro shocks included - Nitro shocks upgrade is available.

Notes:
Requires frame bracket modification.
18" wheels with 5-5.5" backspacing should be test fit prior to mounting tires to ensure proper tie rod end clearance.
18" or larger diameter wheels required.  Stock 17"/18" wheels CANNOT be reinstalled.  Stock 20" wheels can be used with up to 305/60R20 Tire.
E-brake bracket F5608 required for models equipped with factory powersteps.
37x12.50 tires may require some trimming.
Vehicles equipped with a 2 piece rear driveshaft and carrier bearing may require carrier bearing drop kit #D5405.

Estimated Install Time: 8-10 hours
Max Tire Size: 37x12.50
Backspacing 5-5.5"

Vehicle Application:
2015 - 2016 Ford F150 4WD

Installation Instructions - PDF Download
