Ford F250 Super Duty 4.5" Suspension 4WD 2011-2014

Ford F250 Super Duty 4.5" Suspension 4WD 2011-2014

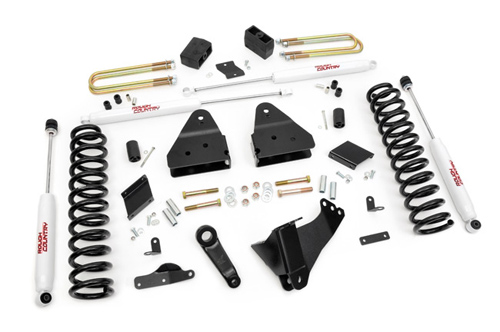

Kit Contains:
Front:  Lifted coil springs, radius arm brackets, sway-bar drop brackets, stabilizer relocation brackets, brake line brackets, track bar relocation bracket, bump-stop spacers, pitman arm & hardware.
Rear:  4" Fabricated lifted blocks, u-bolts, brake line brackets & hardware.
Shocks:  (4) Premium N2.0 series

Note:
Does not fit F350 models.
Does NOT fit V-8 gas engines.
Does NOT fit Dually models.
Fits Diesel and V-10 gas engines ONLY.
Carrier bearing bracket is needed for trucks with 2 piece rear drive shaft.
V10 gas engine models will require exhaust modification to clear the front driveshaft.

Benefits:

• Easy bolt-on installation.
• Increased ground clearance.
• Radius arm drop brackets allow for properly set caster.
• Proper caster is crucial to maintaining factory handling and driveability.
• Application valved N2.0 series shocks offer the best in balanced performance for on and off-road use.
• Fabricated blocks are stronger and offer a longer lifespan than cast blocks.

Estimated Install Time: 4-6 hours
Max Tire Size: 35 x 13.50 x 17
Wheel Backspacing:  4.5"

Vehicle Application:
2011-2014 Ford F250 Super Duty 4WD

Installation Instructions - PDF Download
