Ford F250 Super Duty 6" Radius Arm Suspension Lift Kit 4WD 2011-2014
Engineered to retain factory specs. Keeps the suspension components as close to factory angles as possible. Durable radius arms precision fit to bolt onto the factory mounts to keep factory geometry.
Features:
100% bolt-on installation.
Increased ground clearance.
Levels the front with the rear of the vehicle.
Includes heavy-duty radius arms equipped with durable Clevite Rubber Bushings for maximum vibration absorption.
New radius arms help maintain factory angles.
Includes adjustable alignment cam at the axle to allow caster adjustment.
Includes application valved N2.0 series shock absorbers which offer the best in balanced performance for on and off-road use.
Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem.
Notes:
Does NOT fit dually models.
Does NOT fit gas engine models.
Factory rear contact overload springs will need to be removed.

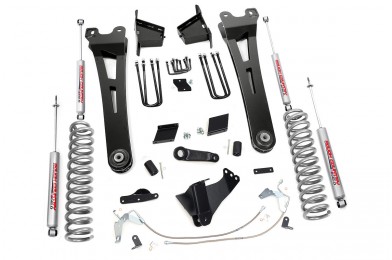

Kit Includes:
Front: Lifted coil springs, radius arms, sway-bar drop brackets, track bar drop bracket, stabilizer relocation bracket, pitman arm, stainless steel brake lines, brake line brackets, bumpstop spacers and hardware.
Rear: Fabricated anti-wrap lift blocks, brake line bracket, u-bolts and hardware.
Shocks: 4 Premium N2.0 series
Max Tire Size: 37 x 12.50 R17
Wheel Backspacing: 4.5"
Estimated Install Time: 6-8 hours
Vehicle Application:
2011-2014 Ford F250 Super Duty 4WD
***Does NOT fit dually models***
***This product is not discountable***
