Ford F250 Super Duty 6" Suspension 4WD 2011-2014

Ford F250 Super Duty 6" Suspension 4WD 2011-2014

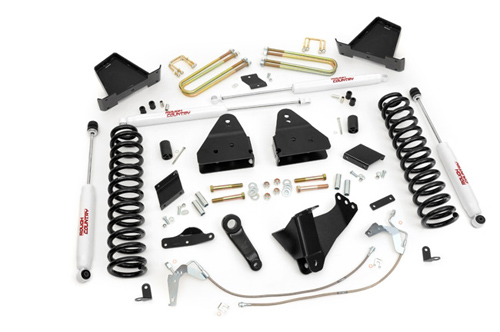

Kit Contains:
Front:  Lifted coil springs, radius arm brackets, sway-bar drop brackets, stabilizer relocation brackets, brake line brackets, stainless steel brake lines, track bar bracket, bump-stop spacers, pitman arm & hardware.
Rear:  Fabricated anti-wrap blocks, carrier bearing drop bracket, u-bolts, brake line bracket & hardware.
Shocks:  Includes (4) Premium N2.0 series shocks.

Note:
Fits F-250 models ONLY
Gas engine models will require exhaust modification to clear the front driveshaft.

Benefits:

• 100% bolt-on installation.
• Increased ground clearance.
• Radius arm drop brackets allow for properly set caster.
• Proper caster is crucial to maintaining factory handling and driveability.
• Application valved N2.0 series shocks offer the best in balanced performance for on and off-road use.
• Specially designed anti-axle wrap rear blocks maintain stock ride quality while eliminating common lift block problem.

Estimated Install Time: 4-5 hours
Max Tire Size: 37 x 12.50 x 17
Wheel Backspacing: 4.5"

Vehicle Application:
2011-2014 Ford F250 Super Duty 4WD

Installation Instructions - PDF Download
