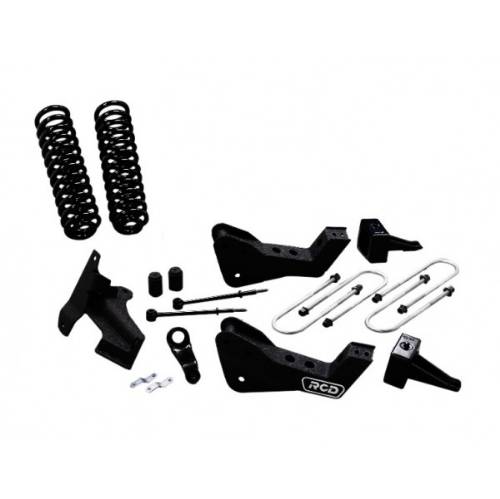

Ford F250/F350 4” Lift Kit w/Fox Shocks, Non-Dually 8 Lug 4WD 2005-2007

• Progressive rate coil springs are made from high quality U.S. spring steel providing long life and superior ride characteristics
• Custom tuned Bilstein 5100 Series monotube gas shocks
• Heavy duty 1/4” thick mounting brackets provide enhanced strength and alignment characteristics
• 3/8” plate steel extreme duty track bar drop bracket eliminates bump steer and provides the ultimate in strength and durability
• Forged steel drop pitman arm maintains precise steering geometry
• Extended sway bar links provide factory mounting locations and proper sway bar function
• Stainless steel extended front brake lines
• Unique “Gator Black” polyurethane powder coat finish
• Grade 8 hardware for reliability

Notes:
Will NOT work with Air Ride or Electronic Suspension Systems
Recalibration of the speedometer, ABS and stability control systems will be required by an authorized Ford Dealer
Vehicles equipped with two-piece driveline may require Drive Shaft Support Drop Down Bracket for the factory carrier bearing.
Rear ride height may vary on certain models depending on the height of the factory block. Additional rear lift may be required on certain models.
Factory Steering Stabilizers are not retained. Heavy duty replacement is required.

Max Tire Size:
35" x 12.5" minor fender/bumper trimming may be required
Backspacing:
17" & larger x 8" - 4.625" backspacing
