Ford F250/F350 6" Coil Over Lift Kit 2011-2016

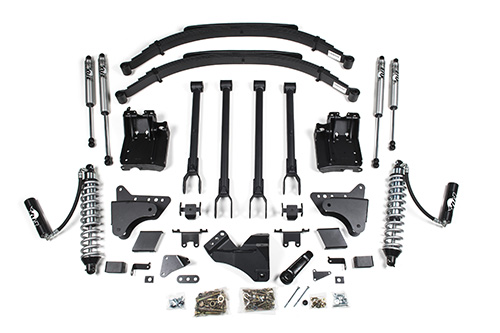

Convert the factory front coil spring suspension to a high performance Fox 2.5 Factory Reservoir Coil Over.
Coil over mounting brackets replace the front facotry coil buckets. The new brackets bolt on using factory frame holes. New double shear coil over mounting brackets replace the factory coil seats at the axle. These brackets have integrated mounting tabs to retain factory brake and ABS lines.
4 Link conversion suspension system replaces the factory radius arms. The 4 link frame brackets bolt into factory holes for mounting the 4 link arms. The front of the lift includes a drop pitman arm and a front track bar relocation bracket to center the axle under the vehicle and correct steering and track bar angles. Front bump stop extensions, sway bar drops and brake line relocation round out the front of the system. The rear includes replacement BDS leaf springs to lift and level the rear of the vehicle with the front.
Notes:
If equipped with 2 piece driveshaft part #123402 carrier bearing drop may be required.
Although extremely rare, front driveline vibration may occur.
If equipped with rear sway bar part #123009 extended sway bar links are required.
Front auxiliary shocks can be omitted from kit, system can be used with c/o installed alone.
This kit is FMVSS No.126 compliant.
Tire & Wheel Combinations: 37" x 12.50" w/ 17 x 9 and 4.5" back spacing
Estimated Install Time: 8-10 hours
Vehicle Application:
2011-2016 Ford F250 Super Duty
2011-2016 Ford F350 Super Duty
