Ford F250/F350 SuperDuty 6" Radius Drop Lift 4WD 2005-2007
This suspension
features luxury ride coil springs matching OE coils rates that are
specifically designed for gas or diesel motors. A heavy duty track bar
relocation bracket properly centers the axle and matches the steering
angles created by the supplied drop pitman arm while the radius arm drop
brackets maintain the Super Duty's O.E. caster angles. A steering
stabilizer relocation bracket maintains proper steering control but a RC
problem solver single unit is recommended with larger tires and a RC
dual stabilizer is required when running 37 tires.

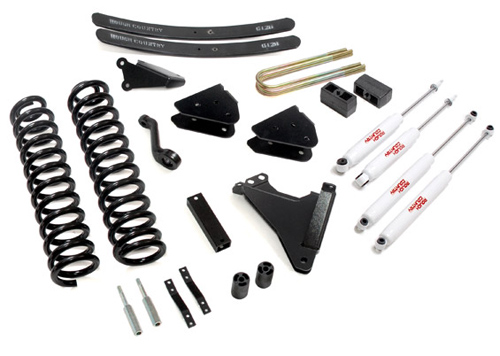

Kit Contents:
Front: Lifted coil springs, radius arm drop brackets, sway-bar link extensions, trac bar relocation bracket, brake line relocation brackets, pitman arm, steering stabilizer relocation bracket, bumpstop spacers and hardware.
Rear: 3" lifted blocks, add-a-leafs, carrier bearing drop bracket, u-bolts, and hardware.
Shocks: (4) Performance N2.0 series.
Notes:
If vehicle is equipped with rear overload leafs, they will need to be removed.
Gas engine models will require exhaust modification to clear the front driveshaft.
Benefits:
- 100% simple bolt-on installation.
- O.E. caster angles are maintained.
- Luxury ride coil springs specifically designed for gas or diesel motors.
- Application valved N2.0 series shocks offer the best in balanced performance for on and off road use.
Estimated Install Time: 6 - 8 hours
Recommended Tire Size: 37x13.50
Vehicle Application:
2005-2007 Ford F250 Super Duty 4WD
2005-2007 Ford F350 Super Duty 4WD
Installation Instructions - PDF Download***This product is not discountable***
