Jeep LJ Wrangler 6" X-series Long Arm Suspension 2004-2006

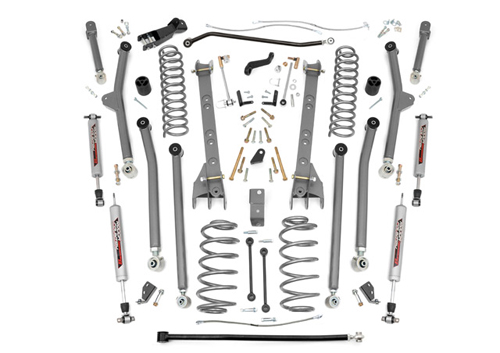

Kit Contains:
Front: High flex coil springs, adjustable upper control arms, adjustable lower control arms, control arm mounting brackets, adjustable track bar, track bar bracket, pitman arm, sway-bar disconnects, stainless steel braided brake lines, bumpstops, hardware.
Rear: High flex coil springs, adjustable upper control arms, adjustable lower control arms, adjustable track bar, extended sway-bar links, stainless steel braided brake lines, bumpstop extensions, hardware.
Shocks: (4) Performance 2.2 series shocks.
Benefits:
- Increased ground clearance.
- Features high clearance lower control arm design.
- Extreme travel long arms keep optimum alignment and give optimum articulation.
- Unbeatable value and best prices in the market.
- X-Flex control arms feature:
- Massive flex joints with 2.5" diameter body and huge 1.25" threads
- All joints are fully rebuildable
- Fully greasable
- Adjustable retainer ring
- Upper joints pivot up to 20 degrees
- Lower joints pivot up to 35 degrees
- Clevite brand OEM style rubber bushings
Note:
Fits Unlimited models ONLY.
A Slip Yoke Eliminator with an extended CV Driveshaft is recommended to avoid driveline vibration.
Rubicon models do not need a SYE kit or CV Driveshaft.
Exhaust will have to be cut and rerouted to make sure it is away from the moving components.
Estimated Install Time: 8-9 hours
Max Tire Size: 35 x 12.50
Wheel Backspacing: 4.5"
Vehicle Application:
2004-2006 Jeep Wrangler LJ
Installation Instructions - PDF Download
