Jeep Wrangler TJ/LJ 6" X-Series Lift Kit 1997-2006

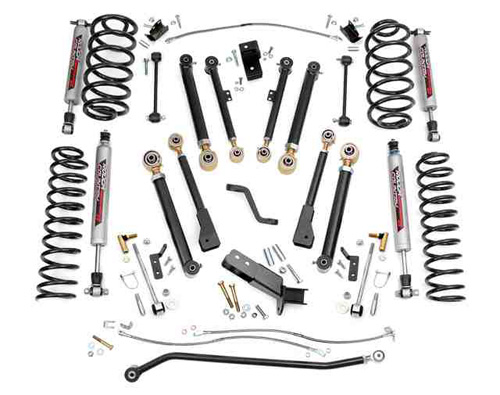

Kit Contains:
Front: Lifted coil springs, upper and lower adjustable control arms, pitman arm, sway bar quick disconnects, adjustable track bar, track bar drop bracket, stainless steel braided brake lines, hardware.
Rear: Lifted coils springs, upper and lower adjustable control arms, track bar drop bracket, lower shock brackets, and stainless steel braided brake line, hardware.
Shocks: (4) Premium N2.0 series. Optional: (4) Performance 2.2 series
Note:
Transfer Case Drop kit or Slip Yoke Eliminator with CV Driveshaft is recommended to avoid driveline vibration.
Rubicon models do not need a SYE kit or t-case drop but a CV Driveshaft is still recommended.
Benefits:
- Easy bolt-on installation.
- Increased ground clearance.
- Levels the front of the Jeep with the rear.
- Coil springs are progressive rate for enhanced ride quality.
- Quick disconnects quickly and easily store out of the way when not in use.
- X-Flex control arm features:
- Massive flex joints with 2.5" diameter body and huge 1.25" threads
- All joints are fully rebuildable
- Fully greasable
- Adjustable retainer ring
- Upper joints pivot up to 20 degrees
- Lower joints pivot up to 35 degrees
- Clevite brand OEM style rubber bushings
Estimated Install Time: 6-8 hours
Max Tire Size: 35 x 12.50
Wheel Backspacing: 4.5"
Vehicle Application:
1997-2006 Jeep Wrangler TJ
2004-2006 Jeep Wrangler LJ
Installation Instructions PDF Download
