Chevrolet/GMC Blazer/Jimmy 4" System with Rear Options 1969-1972

BDS Suspension

Rear Options:

Shock Options:

Steering Stabilizer Options:

Price: $791.78

Quantity:

Add To Cart

Part #: BDS104H

Shipping Weight: 171.75 lb.

Sharing Discount has been applied

Tell A Friend

Summary

BDS Suspension Chevy/GMC Blazer/Jimmy 4" System with Rear Options 1969-1972

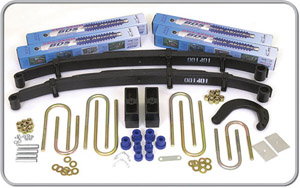

This kit comes with new front Glide-Ride leaf springs. These spring feature bolt style leaf alignment clamps, anti-friction pads, and tapered leafs. The box kit includes new u-bolts, urethane spring bushings, and brake line relocation brackets. The kit also includes a 4" steering arm. The rear kit includes choice of tapered lift blocks and new u-bolts, tapered lift blocks with long thin add-a-leaf and new u-bolts, or new rear Glide-Ride leaf springs and new u-bolts.

Note:
This sytem will only work on vehicles with a 3-bolt steering arm to knuckle mounting system.
If vehicle is equipped with a front anti sway bar, a sway bar drop bracket is available.
Although unusual, if any drive line vibration is experienced there is a transfer case drop kit available in the accessories section.

Estimated Install Time: 5 hours
Max Tire Size: 33 x 12.50
Wheel Backspacing: 3.5"

Vehicle Application:
1969-1972 Chevy Blazer 1500 4WD
1969-1972 GMC Jimmy 1500 4WD

Installation Instructions - PDF Download

Customer Reviews

There are currently no reviews of this product.

New

Customer Questions

There are currently no questions about this product.

New

Product Details

Page 1 of 2 > >>

Options	Part #	Price	Weight
Rear Options: Rear Blocks; Shock Options: NX2 Series; Steering Stabilizer Options: No Stabilizer	BDS104H	$791.78	171.75
Rear Options: Rear Blocks; Shock Options: NX2 Series; Steering Stabilizer Options: Single NX2 + $48.66	BDS104H-55404	$843.38	177.75
Rear Options: Rear Blocks; Shock Options: NX2 Series; Steering Stabilizer Options: Single NX2 w/bracket + $76.82	BDS104H-55310-55402	$873.25	179.55
Rear Options: Rear Blocks; Shock Options: NX2 Series; Steering Stabilizer Options: Dual NX2 w/bracket + $181.16	BDS104H--55374-55405x2	$983.90	181.15
Rear Options: Rear Blocks; Shock Options: NX2 Series; Steering Stabilizer Options: Dual Fox 2.0 + $363.78	BDS104H-55374-98224011x2	$1,197.57	181.15
Rear Options: Rear Blocks; Shock Options: Fox 2.0 Series +$288.00; Steering Stabilizer Options: No Stabilizer	BDS104H-98224620x2-98224660x2	$1,137.20	170.15
Rear Options: Rear Blocks; Shock Options: Fox 2.0 Series +$288.00; Steering Stabilizer Options: Single NX2 + $48.66	BDS104H-98224620x2-98224660x2-55404	$1,188.81	176.15
Rear Options: Rear Blocks; Shock Options: Fox 2.0 Series +$288.00; Steering Stabilizer Options: Single NX2 w/bracket + $76.82	BDS104H-98224620x2-98224660x2-55310-55402	$1,218.67	177.95
Rear Options: Rear Blocks; Shock Options: Fox 2.0 Series +$288.00; Steering Stabilizer Options: Dual NX2 w/bracket + $181.16	BDS104H-98224620x2-98224660x2-55374-55405x2	$1,329.32	179.55
Rear Options: Rear Blocks; Shock Options: Fox 2.0 Series +$288.00; Steering Stabilizer Options: Dual Fox 2.0 + $363.78	BDS104H-98224620x2-98224660x2-55374-98224011x2	$1,522.99	179.55
Rear Options: Rear Blocks & Add-A-Leafs + $75.13; Shock Options: NX2 Series; Steering Stabilizer Options: No Stabilizer	BDS105H	$871.46	192.76
Rear Options: Rear Blocks & Add-A-Leafs + $75.13; Shock Options: NX2 Series; Steering Stabilizer Options: Single NX2 + $48.66	BDS105H-55404	$923.06	198.76
Rear Options: Rear Blocks & Add-A-Leafs + $75.13; Shock Options: NX2 Series; Steering Stabilizer Options: Single NX2 w/bracket + $76.82	BDS105H-55310-55402	$952.92	200.56
Rear Options: Rear Blocks & Add-A-Leafs + $75.13; Shock Options: NX2 Series; Steering Stabilizer Options: Dual NX2 w/bracket + $181.16	BDS105H-55374-55405x2	$1,063.58	202.16
Rear Options: Rear Blocks & Add-A-Leafs + $75.13; Shock Options: NX2 Series; Steering Stabilizer Options: Dual Fox 2.0 + $363.78	BDS105H-55374-98224011x2	$1,277.24	202.16
