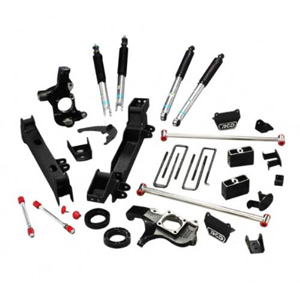

Chevrolet/GMC C2500 Pickup 5"-6" Suspension Lift Kit The Chevrolet & GMC 8-lug IFS chassis
has been a mainstay for over two decades and continues to be the most
popular application in the light truck market. Although we have seen
many body style and suspension refinements over the years, the basic GM
IFS system has proven time and again to put forth one of the best
handling and best riding chassis available to modify. RCD Suspension,
with its industry leading sub-frame and spindle technology, has
capitalized on this platform to produce a high quality product that
exceeds even the most discerning customer’s needs. RCD Suspension
continues to produce these systems for all 1988 through 2008 GM IFS
truck and SUV models.
- CNC machined replacement cast iron steering knuckles
- T-6 billet aluminum axle spacers
- Zinc plated billet steel “Super-Flex” sway bar end links
- No drive shaft modifications necessary for installation
- Includes Bilstein 5100 Series Shocks
Notes:
Will NOT work with Air Ride or Electronic Suspension Systems.
Will NOT work on vehicle s equipped with rear steering.
Recalibration of the speedometer, ABS and stability control systems will be required.
Must enlarge lower control arm sway bar end link mounting hole to 3/4".
Vehicles equipped with two piece rear drive shaft may require part #20-68747 Drive Shaft Support Drop Down Bracket for the factory carrier bearing.
Max Tire Size:
33" x 12.5" no modifications
35" & larger x 12.5" require minor bumper and fender trimming
Backspacing:
16" x 8 - 4.5" backspacing
17" & larger x 8" - 4.625" backspacing
For use on vehicles with IFS, Torsion bar style front end
Vehicle Application:
07-2000-2010 Chevrolet Silverado 2500 8Lug 2WD
07/2000-2010 GMC Sierra 2500 8Lug 2WD
