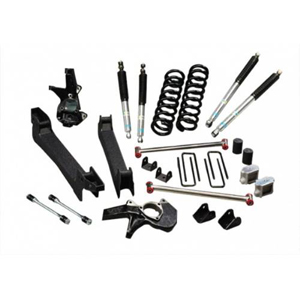

Chevrolet/GMC Silverado/Sierra 1500 3"-6" Suspension Lift Kit Like their big brother 2500 HD platform, the Chevrolet & GMC 6-Lug
IFS platform has been a mainstay for over two decades. The classic GM
IFS suspension technology has been proven time and again to provide
exceptional handling characteristics and performance, giving “The
General” an upper hand in its popularity for suspension system upgrades.
RCD Suspension, with its industry leading sub-frame and spindle
technology, has capitalized on this platform to produce a high quality
product that exceeds even the most discerning customers needs. RCD
Suspension continues to produce these systems for all 1988 through 2008
GM IFS truck and SUV models.
- CNC machined replacement cast iron steering knuckles
- T-6 billet aluminum axle spacers
- Zinc plated billet steel “Super-Flex” sway bar end links
- No drive shaft modifications necessary for installation
- New for 20D7-2008 Models is the elimination of the classic torsion
bar set up in favor of a “coil over strut” front end. RCD Suspension
continues to provide Bilstein Monotube Shocks for these applications
(optional on some models).
- Kit includes Bilstein 5100 Series Shocks
Notes:
2007 Model must be the Classic Body Style.
Will NOT work with Air Ride or Electronic Suspension Systems.
Will NOT work on vehicles equipped with rear steering.
Recalibration of the speedometer, ABS and stability control systems will be required.
Must enlarge lower control arm sway bar end link mounting hole to 3/4”.
Some models may require an exhaust modification to clear the front driveshaft.
Max Tire Size:
33" x 12.5" no modifications
35" & larger x 12.5" requires minor bumper trimming
Backspacing:
16" x 8" - 4.5" backspacing
17" & larger x 8" - 4.625"backspacing
For vehicles with Coil Springs ONLY
Vehicle Application:
1999-2007 Chevrolet Silverado 1500 2WD
1999-2007 GMC Sierra 1500 2WD
