Dodge Ram 2500/3500 5" Suspension System 4WD 2003-2007

Zone Offroad

Rear Axle:

Powerwagon model:

Shock Options:

Steering Stabilizer Options:

Driveline Adjustment:

Price: $770.96

Quantity:

Add To Cart

Part #: ZOND5

Shipping Weight: 0 lb.

Sharing Discount has been applied

Tell A Friend

Summary

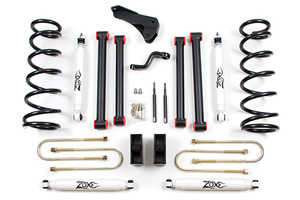

Dodge Ram 2500/3500 5" Suspension System 4WD 2003-2007

This 5" system features tubular upper and lower control arms to properly locate and rotate the front axle to ensure proper alignment. These greasable arms unsure long term performance. The dropped pitman arm combined with the heavy duty track bar bracket ensures factory steering geometry. Whether on road or offroad this system is built to perform. The kit also includes custom valved Zone shocks that have been tuned to the 5" coils thus ensuring not only performance, but great ride quality.

Heavy duty greasable control arms included
Extended Length Urethane Bump Stops
Track Bar Relocation to properly center your axle
Pitman Arm included to maintain steering geometry
Completely Bolt on System

Note:
This truck was produced with different rear axles. Be sure to measure the diameter of your rear axle before ordering.
This system will not fit dually applications due to the rear u-bolt size.
If a carrier bearing exists in the rear driveshaft, a carrier bearing drop kit may be required.
Gas models may sit approximately .5" higher than the advertised lift height.
Kit includes a 4" rear block kit. Measure your truck before ordering to determine the stance of your truck with the lift installed.
**Long bed trucks require carrier bearing drop part #D5505. See below**

Estimated Install Time: 6-8 hours
Max Tire Size: 36 x 12.50
Wheel Backspacing: 5"

Vehicle Application:
2003-2007 Dodge Ram 1500 Mega Cab 4WD Gas
2003-2007 Dodge Ram 2500 4WD Gas/Diesel
2003-2007 Dodge Ram 3500 4WD Gas/Diesel

Installation Instructions - PDF Download

Customer Reviews

There are currently no reviews of this product.

New

Customer Questions

There are currently no questions about this product.

New

Product Details

Page 1 of 5 > >>

Options	Part #	Price
Rear Axle: 3-1/2" Rear Axle; Powerwagon model: Not a Powerwagon; Shock Options: Hydro Shocks; Steering Stabilizer Options: No Steering Stabilizer; Driveline Adjustment: No Thanks	ZOND5	$770.96
Rear Axle: 3-7/8" Rear Axle; Powerwagon model: Not a Powerwagon; Shock Options: Hydro Shocks; Steering Stabilizer Options: No Steering Stabilizer; Driveline Adjustment: No Thanks	ZOND8	$770.96
Rear Axle: 4-1/8" Rear Axle; Powerwagon model: Not a Powerwagon; Shock Options: Hydro Shocks; Steering Stabilizer Options: No Steering Stabilizer; Driveline Adjustment: No Thanks	ZOND9	$770.96
Rear Axle: 3-1/2" Rear Axle; Powerwagon model: Powerwagon Sway Bar Link Kit + $37.55; Shock Options: Hydro Shocks; Steering Stabilizer Options: No Steering Stabilizer; Driveline Adjustment: No Thanks	ZOND5-D5301	$808.51
Rear Axle: 3-7/8" Rear Axle; Powerwagon model: Powerwagon Sway Bar Link Kit + $37.55; Shock Options: Hydro Shocks; Steering Stabilizer Options: No Steering Stabilizer; Driveline Adjustment: No Thanks	ZOND8-D5301	$808.51
Rear Axle: 4-1/8" Rear Axle; Powerwagon model: Powerwagon Sway Bar Link Kit + $37.55; Shock Options: Hydro Shocks; Steering Stabilizer Options: No Steering Stabilizer; Driveline Adjustment: No Thanks	ZOND9-D5301	$808.51
Rear Axle: 3-1/2" Rear Axle; Powerwagon model: Not a Powerwagon; Shock Options: Nitro Shocks + $21.08; Steering Stabilizer Options: No Steering Stabilizer; Driveline Adjustment: No Thanks	ZOND5N	$792.04
Rear Axle: 3-7/8" Rear Axle; Powerwagon model: Not a Powerwagon; Shock Options: Nitro Shocks + $21.08; Steering Stabilizer Options: No Steering Stabilizer; Driveline Adjustment: No Thanks	ZOND8N	$792.04
Rear Axle: 4-1/8" Rear Axle; Powerwagon model: Not a Powerwagon; Shock Options: Nitro Shocks + $21.08; Steering Stabilizer Options: No Steering Stabilizer; Driveline Adjustment: No Thanks	ZOND9N	$792.04
Rear Axle: 3-1/2" Rear Axle; Powerwagon model: Powerwagon Sway Bar Link Kit + $37.55; Shock Options: Nitro Shocks + $21.08; Steering Stabilizer Options: No Steering Stabilizer; Driveline Adjustment: No Thanks	ZOND5N-D5301	$829.59
Rear Axle: 3-7/8" Rear Axle; Powerwagon model: Powerwagon Sway Bar Link Kit + $37.55; Shock Options: Nitro Shocks + $21.08; Steering Stabilizer Options: No Steering Stabilizer; Driveline Adjustment: No Thanks	ZOND8N-D5301	$829.59
Rear Axle: 4-1/8" Rear Axle; Powerwagon model: Powerwagon Sway Bar Link Kit + $37.55; Shock Options: Nitro Shocks + $21.08; Steering Stabilizer Options: No Steering Stabilizer; Driveline Adjustment: No Thanks	ZOND9N-D5301	$829.59
Rear Axle: 3-1/2" Rear Axle; Powerwagon model: Not a Powerwagon; Shock Options: Hydro Shocks; Steering Stabilizer Options: White Steering Stabilizer + $49.95; Driveline Adjustment: No Thanks	ZOND5-3200	$820.91
Rear Axle: 3-7/8" Rear Axle; Powerwagon model: Not a Powerwagon; Shock Options: Hydro Shocks; Steering Stabilizer Options: White Steering Stabilizer + $49.95; Driveline Adjustment: No Thanks	ZOND8-3200	$820.91
Rear Axle: 4-1/8" Rear Axle; Powerwagon model: Not a Powerwagon; Shock Options: Hydro Shocks; Steering Stabilizer Options: White Steering Stabilizer + $49.95; Driveline Adjustment: No Thanks	ZOND9-3200	$820.91
