Ford F150 4" Suspension Lift Kit 4WD 2015-2016

BDS Suspension

Shock Options:

E-Brake Bracket:

Price: $1,960.41

Quantity:

Add To Cart

Part #: BDS1507H

Shipping Weight: 246.48 lb.

Sharing Discount has been applied

Tell A Friend

Summary

Ford F150 4" Suspension Lift Kit 4WD 2015-2016

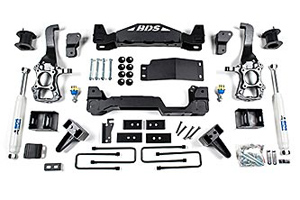

This 4" system uses a pair of one piece laser cut crossmembers, steering knuckles, differential relocation brackets, differential skid plate, upper strut mount spacers, bump stop extensions, sway bar relocation, new cam bolts and driveshaft spacer.

The rear axle is recentered by a 4" offset pin block, replacing the factory block. Rear brake line extensions and rear shocks round out the kit.

Tire & Wheel Combinations:
35" x 12.50" w/18 x 9 and 5" back spacing
35" x 12.50" w/18 x 9 and 5 - 5.5" back spacing
20 x 9 w/35x12.50 and 5-5.5" back spacing

Notes:
Requires frame bracket modification and welding.
18" wheels with 5-5.5" total backspacing should be test fir prior to mounting tire to ensure proper clearance to BDS steering knuckle.
18" or larger diameter wheels required. Stock 17" & 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires.
E-brake bracket required for factory powersteps (123018) Block kits replace factory 1-1/4" block.
For a level to tail low appearance use #023416 with Kit#1502H or use #013429 with Kit#1503H. Block kits replace factory 1-1/4" block.
Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122405.
This kit is FMVSS No.126 Compliant.

Vehicle Application:
2015 - 2016 Ford F150 4WD

Installation Instructions - PDF Download

Customer Reviews

There are currently no reviews of this product.

New

Customer Questions

There are currently no questions about this product.

New

Product Details

Options	Part #	Price
Shock Options: 5500 Series; E-Brake Bracket: No Thanks	BDS1507H	$1,960.41
Shock Options: 5500 Series; E-Brake Bracket: Yes + $13.66	BDS1507H-123018	$1,974.89
Shock Options: Fox 2.0 Series + $144.00; E-Brake Bracket: No Thanks	BDS1507H-98224828x2	$2,133.12
Shock Options: Fox 2.0 Series + $144.00; E-Brake Bracket: Yes + $13.66	BDS1507H-98224828x2-123018	$2,147.61
