Ford F150 6" Fox Performance Coil Over System 2WD 2014

BDS Suspension

Rear Lift Options:

E-Brake Bracket:

Rear Driveshaft Spacer:

Price: $4,103.75

Quantity:

Add To Cart

Part #: BDS1505F-5"Block

Shipping Weight: 296.39 lb.

Sharing Discount has been applied

Tell A Friend

Summary

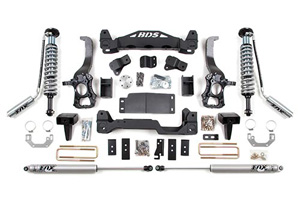

Ford F150 6" Fox Performance Coil Over System 2WD 2014

Features Fox 2.5" coil over remote reservoir shocks. Kit includes CNC machined steering knuckles to return steering to factory geometry with lift. Once piece front & rear high clearance crossmembers increase rigidity and ground clearance. A 1/4" thick steel differential skid plate ensures offroad protection. New front strut spacers are easy to install without the need to disassemble the struts and maintain OE ride quality. Rear is lifted with a new 5" block and a new offset spring plate the center the rear axle.

Tire & Wheel Combination:
37" x 12.50" w/18 x 9 and 5" backspacing
35" x 12.50" w/18 x 9 and 5-5.5" backspacing
37" x 12.50" 2/20 x 9 and 5-5.5" backspacing

Estimated Install Time: 8-10 hours

Notes:
18" or larger diameter wheels required. Stock 17" & 18" wheels can NOT be reinstalled. Stock 20" wheels can be used with up to 305/60-20 tires.
E-brake bracket required for factory powersteps.
Block kit replaces factory block.
For level to tail low appearance use #013429.
Models with a 2 piece rear driveshaft may require carrier bearing drop shim kit #122405.
This kit is FMVSS No.126 Compliant.

Vehicle Application:
2014 Ford F150 2WD

Installation Instructions - PDF Download

Customer Reviews

There are currently no reviews of this product.

New

Customer Questions

There are currently no questions about this product.

New

Product Details

Options	Part #	Price	Weight
Rear Lift Options: 5" Block; E-Brake Bracket: No Thanks; Rear Driveshaft Spacer: No Thanks	BDS1505F-5"Block	$4,103.75	296.39
Rear Lift Options: 5" Block; E-Brake Bracket: No Thanks; Rear Driveshaft Spacer: Yes + $80.72	BDS1505F-5"Block-123609	$4,103.75	299.39
Rear Lift Options: 5" Block; E-Brake Bracket: Yes + $13.66; Rear Driveshaft Spacer: No Thanks	BDS1505F-5"Block-123018	$4,103.75	297.89
Rear Lift Options: 5" Block; E-Brake Bracket: Yes + $13.66; Rear Driveshaft Spacer: Yes + $80.72	BDS1505F-5"Block-123018-123609	$4,103.75	300.89
Rear Lift Options: 4" Block; E-Brake Bracket: No Thanks; Rear Driveshaft Spacer: No Thanks	BDS1505F-4"Block	$4,103.75	274.19
Rear Lift Options: 4" Block; E-Brake Bracket: No Thanks; Rear Driveshaft Spacer: Yes + $80.72	BDS1505F-4"Block-123609	$4,103.75	277.19
Rear Lift Options: 4" Block; E-Brake Bracket: Yes + $13.66; Rear Driveshaft Spacer: No Thanks	BDS1505F-4"Block-123018	$4,103.75	275.69
Rear Lift Options: 4" Block; E-Brake Bracket: Yes + $13.66; Rear Driveshaft Spacer: Yes + $80.72	BDS1505F-4"Block-123018-123609	$4,103.75	278.69
