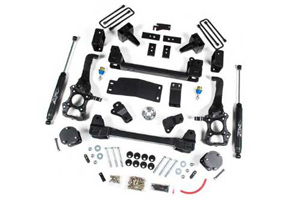

Ford F150 6" Suspension System 4WD 2015-2016The
system is built around 2 heavy duty 1-piece lower control arm
crossmembers and massive ductile cast iron steering knuckles.
Differential relocation brackets place the front differential for
perfect CV angles and still allow for the factory front driveshaft to
perform as is should. The 6" of lift is provided by bolt-on strut
spacers that do not require disassembly of the factory struts to
install. New eccentric cam bolts make adjusting the alignment easy, sway
bar drops adjust the sway bar to its optimum position and a heavy 1/4"
thick differential skid plate protects the underside when off driving
off road.
In the rear, full 5" cast iron lift blocks with
integrated bump stop wings provide enough lift to level the truck
nicely.
Features
- Front and rear heavy duty 1-piece lower control arm crossmembers
- Massive ductile cast iron steering knuckles
- Full differential relocation bracket system included to properly correct CV shaft angles
- Includes bolt-on strut spacers - strut disassembly not required
- New eccentric cam bolts included for easy alignment
- Includes sway bar relocation brackets to acheive optimum position for sway bar
- 1/4" thick differential skid plate included
- 5" Rear Blocks with integrated bump stop wings to acheive a more level stance
- Rear Hydro shocks included - Nitro shocks upgrade is available.
Notes:
Requires frame bracket modification.
18" wheels with 5-5.5" backspacing should be test fit prior to mounting tires to ensure proper tie rod end clearance.
18" or larger diameter wheels required. Stock 17"/18" wheels CANNOT be reinstalled. Stock 20" wheels can be used with up to 305/60R20 Tire.
E-brake bracket F5608 required for models equipped with factory powersteps.
37x12.50 tires may require some trimming.
Vehicles equipped with a 2 piece rear driveshaft and carrier bearing may require carrier bearing drop kit #D5405.
Estimated Install Time: 8-10 hours
Max Tire Size: 37x12.50
Backspacing 5-5.5"
Vehicle Application:
2015 - 2016 Ford F150 4WD
Installation Instructions - PDF Download
