Ford F250/350 Super Duty 6" Radius Drop Suspension 4WD 2008-2010

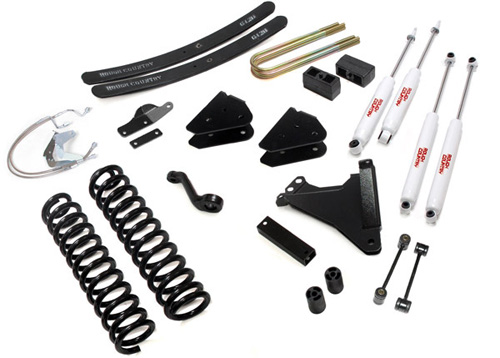

Kit Contains:
Front: Lifted coil springs, radius arm drop brackets, extended sway-bar links, trac bar relocation bracket, extended brake lines, pitman arm, and steering stabilizer relocation bracket, bump stop spacers and hardware.
Rear: 3" lifted blocks, add-a-leafs, carrier bearing drop bracket, u-bolts, and hardware.
Shocks: (4) Premium N2.0 series.
This suspension features luxury ride coil springs matching OE coils rates that are specifically designed for gas or diesel motors. A heavy duty track bar relocation bracket properly centers the axle and matches the steering angles created by the supplied drop pitman arm while the radius arm drop brackets maintain the Super Duty's O.E. caster angles. A steering stabilizer relocation bracket maintains proper steering control but a RC problem solver single unit is recommended with larger tires and a RC dual stabilizer is required when running 37 tires.
Note:
Does NOT fit Dually models
If vehicle is equipped with rear overload leafs, they will need to be removed.
Gas engine models will require exhaust modification to clear the front driveshaft.
Benefits:
- 100% simple bolt on installation
- O.E. caster angles are maintained
- Luxury ride coil springs specifically designed for gas or diesel motors
- Application valved N2.0 series shocks offer the best in balanced performance for on and off-road use.
Estimated Install Time: 6-8 hours
Max Tire Size: 37 x 13.50
Vehicle Application:
2008-2010 Ford F250 Super Duty 4WD
2008-2010 Ford F350 Super Duty 4WD
Installation Instructions - PDF Download
