Ford Super Duty 6" Radius Arm Lift Kits 2005-2007

Zone Offroad

Select Engine:

Additional U-Bolts:

Shock Options:

Driveline Adjustment:

Steering Stabilizer Options:

Price: $1,279.95

Quantity:

Add To Cart

Part #: ZONF38

Shipping Weight: 0 lb.

Sharing Discount has been applied

Tell A Friend

Summary

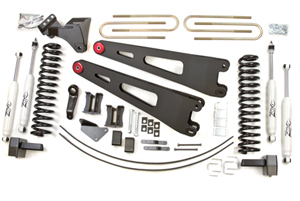

Ford Super Duty 6" Radius Arm Lift Kits Part #F38 (Diesel) F39 (Gas) 2005-2007

Zone Offroad is now shipping 6" radius arm lift kits for the 2005-2007 Ford Super Duty Trucks. Get rid of the factory stamped steel arms and upgrade to a set of Zone's stout radius arms. Fully boxed and constructed from 1/4" steel, these arms are built for performance and feature oversized 2-1/2" greaseable urethane bushings. Gas or diesel specific coil springs ride great and offer enough clearance for 37" tires.

Also included in the 6" system is a heavy duty track bar drop bracket, pitman arm, brake line brackets, sway bar relocation brackets, bump stop extensions and new steering stabilizer bracket.

In the rear, the kit replaces the factory block out for a new 5" block, add-a-leaf, and zinc-plated u-bolts. Choose from either Zone Hydro or Nitro shocks to complete this system for an improved stance and upgraded performance for the 2005-2007 Ford Super Duty.

Replacement 1/4" steel radius arms
Gas or diesel specific coil springs
Clearance for 37" tires

Notes

Removal of the factory rear block is required. Net rear height gain will vary based on size of the factory block, but will result in a level stance.
If equipped with a 2-piece rear drive shaft, then a drivshaft alignment kit may be required. It is available in the optional accessories (part # F5401).
Although extremely rare, front drive line vibration may occur.
Rear box kit not designed for dually models.
Front exhaust modification may be required to clear the front driveshaft on gas models.

Vehicle Application:
2005-2007 Ford F250 Super Duty 4WD
2005-2007 Ford F350 Super Duty 4WD

Installation Instructions - PDF Download

Customer Reviews

There are currently no reviews of this product.

New

Customer Questions

There are currently no questions about this product.

New

Product Details

Page 1 of 4 > >>

Options	Part #	Price
Select Engine: Diesel Engine; Additional U-Bolts: No Additional U-Bolts; Shock Options: Hydro Shocks; Driveline Adjustment: No Thanks; Steering Stabilizer Options: No Steering Stabilizer	ZONF38	$1,279.95
Select Engine: Gas Engine; Additional U-Bolts: No Additional U-Bolts; Shock Options: Hydro Shocks; Driveline Adjustment: No Thanks; Steering Stabilizer Options: No Steering Stabilizer	ZONF39	$1,279.95
Select Engine: Diesel Engine; Additional U-Bolts: 18-1/2" U-Bolts + $43.20; Shock Options: Hydro Shocks; Driveline Adjustment: No Thanks; Steering Stabilizer Options: No Steering Stabilizer	ZONF38-U4035	$1,323.15
Select Engine: Gas Engine; Additional U-Bolts: 18-1/2" U-Bolts + $43.20; Shock Options: Hydro Shocks; Driveline Adjustment: No Thanks; Steering Stabilizer Options: No Steering Stabilizer	ZONF39-U4035	$1,323.15
Select Engine: Diesel Engine; Additional U-Bolts: No Additional U-Bolts; Shock Options: Nitro Shocks + $21.08; Driveline Adjustment: No Thanks; Steering Stabilizer Options: No Steering Stabilizer	ZONF38N	$1,301.03
Select Engine: Gas Engine; Additional U-Bolts: No Additional U-Bolts; Shock Options: Nitro Shocks + $21.08; Driveline Adjustment: No Thanks; Steering Stabilizer Options: No Steering Stabilizer	ZONF39N	$1,301.03
Select Engine: Diesel Engine; Additional U-Bolts: 18-1/2" U-Bolts + $43.20; Shock Options: Nitro Shocks + $21.08; Driveline Adjustment: No Thanks; Steering Stabilizer Options: No Steering Stabilizer	ZONF38N-U4035	$1,344.23
Select Engine: Gas Engine; Additional U-Bolts: 18-1/2" U-Bolts + $43.20; Shock Options: Nitro Shocks + $21.08; Driveline Adjustment: No Thanks; Steering Stabilizer Options: No Steering Stabilizer	ZONF39N-U4035	$1,344.23
Select Engine: Diesel Engine; Additional U-Bolts: No Additional U-Bolts; Shock Options: Hydro Shocks; Driveline Adjustment: Carrier Bearing Drop + $44.95; Steering Stabilizer Options: No Steering Stabilizer	ZONF38-F5401	$1,324.90
Select Engine: Gas Engine; Additional U-Bolts: No Additional U-Bolts; Shock Options: Hydro Shocks; Driveline Adjustment: Carrier Bearing Drop + $44.95; Steering Stabilizer Options: No Steering Stabilizer	ZONF39-F5401	$1,324.90
Select Engine: Diesel Engine; Additional U-Bolts: 18-1/2" U-Bolts + $43.20; Shock Options: Hydro Shocks; Driveline Adjustment: Carrier Bearing Drop + $44.95; Steering Stabilizer Options: No Steering Stabilizer	ZONF38-U4035-F5401	$1,368.10
Select Engine: Gas Engine; Additional U-Bolts: 18-1/2" U-Bolts + $43.20; Shock Options: Hydro Shocks; Driveline Adjustment: Carrier Bearing Drop + $44.95; Steering Stabilizer Options: No Steering Stabilizer	ZONF39-U4035-F5401	$1,368.10
Select Engine: Diesel Engine; Additional U-Bolts: No Additional U-Bolts; Shock Options: Nitro Shocks + $21.08; Driveline Adjustment: Carrier Bearing Drop + $44.95; Steering Stabilizer Options: No Steering Stabilizer	ZONF38N-F5401	$1,345.98
Select Engine: Gas Engine; Additional U-Bolts: No Additional U-Bolts; Shock Options: Nitro Shocks + $21.08; Driveline Adjustment: Carrier Bearing Drop + $44.95; Steering Stabilizer Options: No Steering Stabilizer	ZONF39N-F5401	$1,345.98
Select Engine: Diesel Engine; Additional U-Bolts: 18-1/2" U-Bolts + $43.20; Shock Options: Nitro Shocks + $21.08; Driveline Adjustment: Carrier Bearing Drop + $44.95; Steering Stabilizer Options: No Steering Stabilizer	ZONF38N-U4035-F5401	$1,389.18
