Mazda Pickup 4" Front 3.5" Rear Suspension System 4WD 1994-1997

Fat Bob's Garage, BDS Part #533H, Mazde Pickup 4" Front 3.5" Rear Suspension System 4WD 1994-1997 MAIN

Mazda Pickup 4" Front 3.5" Rear Suspension System 4WD 1994-1997

BDS Suspension

Steering Stabilizer Options:

Price: $859.13

Quantity:

Add To Cart

Part #: BDS533H

Shipping Weight: 129.5 lb.

Sharing Discount has been applied

Tell A Friend

Summary

BDS Suspension Mazda Pickup 4" Front 3.5" Rear Suspension System 4WD 1994-1997

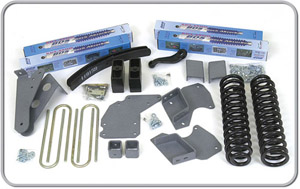

This kit comes with new Pro-Ride coil springs for the front. The box kit includes a dropped pitman arm for steering correction, radius arm drop brackets, axle pivot drop brackets, bump stop extensions, and sway bar drop brackets. The rear is lift with a 2" block and an add-a-leaf to bring life back to your old worn out springs.

Note:
Front ball joint alignment cams may be required for alignment.
Models equipped with two piece driveshaft will require lowering of the carrier bearing crossmember.
Models with CV joint type drive shaft must be converted to exposed jont shaft.
The dual steering stabilizer available in the accessories section will not work with vehicles equipped with a front anti-sway bar.

Estimated Install Time: 6 hours
Max Tire Size: 10 x 10.50
Wheel Backspacing: 3-1/2"

Vehicle Application:
1994-1997 Mazda Pickup 4WD Gas

Installation Instructions - PDF Download

Customer Reviews

There are currently no reviews of this product.

New

Customer Questions

There are currently no questions about this product.

New

Product Details

Option	Part #	Price	Weight
Steering Stabilizer Options: None	BDS533H	$859.13	129.5
Steering Stabilizer Options: Single NX2 + $87.79	BDS533H-55402-55337	$952.23	137.5
Steering Stabilizer Options: Dual NX2 + $142.98	BDS533H-55324-55402x2	$1,010.76	144.5
