Rough Country 5 Inch Lift Kit | DRW | OE Rear Air | Ram 3500 4WD (2020-2023)

Rough Country 5 Inch Lift Kit | DRW | OE Rear Air | Ram 3500 4WD (2020-2023)

Description:
Compliment your RAM 3500's aggressive, good looks with Rough Country's 5-inch Radius Arm Lift Kit. RAM Trucks come with a wealth of impressive features right from the factory. RAM Trucks come with a wealth of impressive features right from the factory. Rough Country's new 5-inch kit was engineered to retain these impressive factory specs while bumping up performance and durability where it's needed most. The result is a lifted beast with a mean profile and lush ride-quality that'll make other RAM owners wonder where you got yours from! When changing a vehicle's suspension, the key to preserving ride quality is in keeping the geometry of all suspension components as close to their factory angles as possible. Rough Country's 5-inch Suspension kit features a set of ultra-durable Radius Arms, precision fit to bolt right into the factory mounts for an easier install and a more factory-like angle. These beefy, upgraded Radius Arms also feature a durable, durable rubber bushings for maximum vibration absorption. This kit also includes a set of front, lifted coil springs for unparalleled ride quality from your lifted Dodge Ram.

Features:
Increased ground clearance Track bar bracket keeps the front axle properly centered Radius Arms offer a more factoryΓÇÉlike angle and feature a durable, durable rubber Bushings for maximum vibration absorption Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and offΓÇÉroad use.

Notes:
Requires removal of Transfer case for clocking ring install for correct front driveline geometry. Does NOT fit 'Power Wagon' models Fits single rear wheel and dual real wheel models. Rear wheels may require additional dually wheel spacers to run 12.50in wide tire ONLY fits Diesel models Requires minor cutting. On vehicles equipped with a two piece driveshaft & carrier bearing as on the Mega Cab, there is the potential for take off vibration, depending on the severity, this can be corrected with shimming down the carrier bearing. Does NOT fit models with 6.7L HO Turbo Diesel with 6-speed Aisin Transmission. Does NOT fit cab & chassis models.

Install Time:
6-8 hours

Front Components:

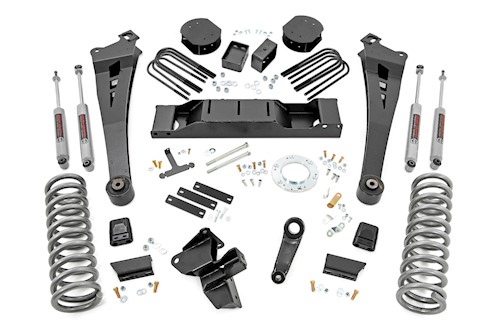

Lifted Coil springs Radius arms Track Bar bracket Transmission crossmember Clocking ring Sway-bar brackets Pitman arm Carrier bearing shims Hardware

Rear Components:
Rear air bag spacers Track bar bracket Sway-bar links Hardware

Fitment:
2020-2023 4WD Ram 3500

Tire Info:
37x12.50R17 17x8.5 8x6.5/8x165.1 +0
37x12.50R17 17x9 8x6.5/8x165.1 +0
37x12.50R20 20x9 8x6.5/8x165.1 +0
37x12.50R20 20x9 8x6.5/8x165.1 +1 Minor Trimming
37x12.50R20 20x10 8x6.5/8x165.1 19 Minor Trimming
37x12.50R20 20x10 8x6.5/8x165.1 18 Minor Trimming
37x12.50R22 22x10 8x6.5/8x165.1 19 Minor Trimming
