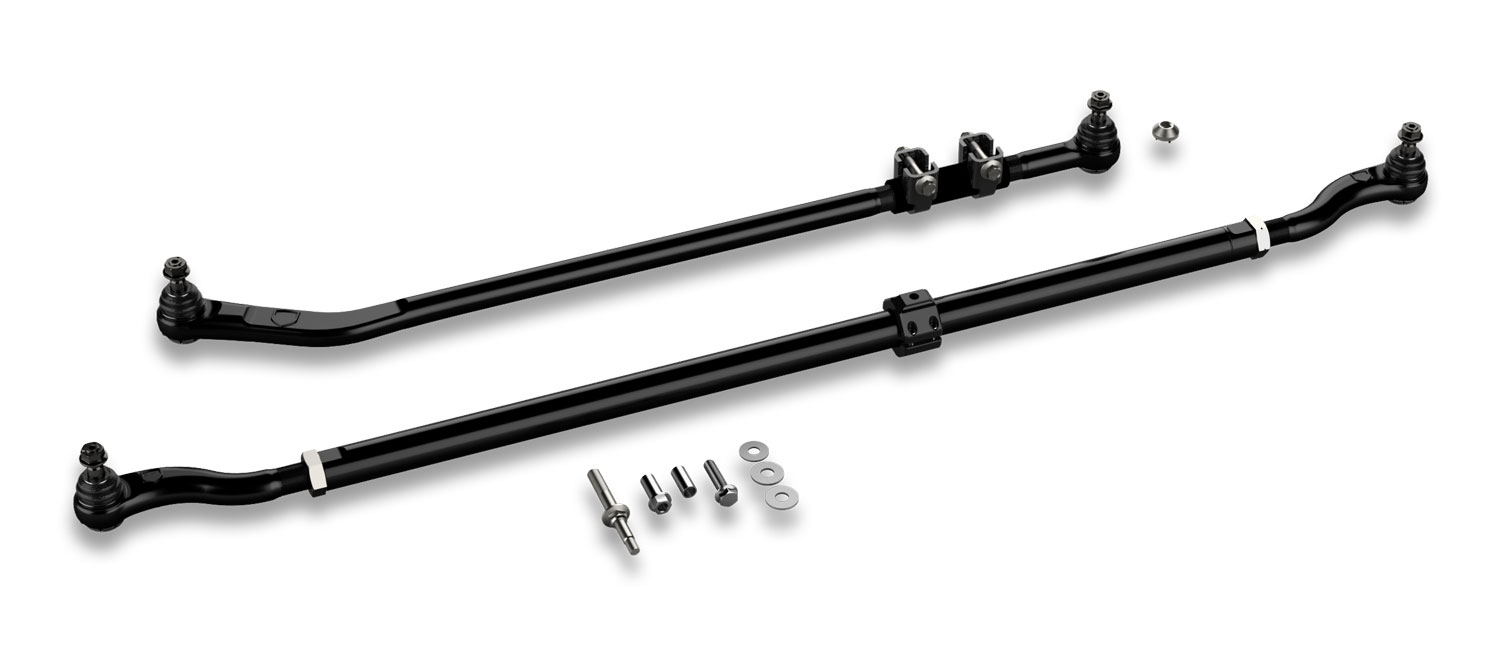

The TeraFlex JK: HD Drag Link Kit & HD Tie Rod Kit withstands extreme conditions and abuse that typically causes factory steering components to bend and fail on lifted JK Wrangler/Unlimited models.
Fits:
JK Wrangler (2-door)
JK Wrangler Unlimited (4-door)
Dana 30 front axle
Dana 44 front axle
0-3" Lift
Includes:
HD Drag Link Kit (# 1853920)
HD Tie Rod (# 1853910)
Steering Stabilizer Relocation Mount Bracket Kit - HD Tie Rod (# 1123160)
Features & Benefits:
Bolts directly to new High Steer Knuckle (not included)
50% stiffer than factory drag link to help eliminate front end shimmy and other alignment issues
1.25" O.D. fully forged drag link eliminates excess movement during hard steering maneuvers
Utilizes oversized DOM factory-style adjusting collar and pinch clamp for simple adjustments
Adjustable joint preload tension to ensures proper long-term durability
Joint is pressed into rod end housing and secured w/ snap ring
Provides clearance for factory 17" wheels
HD 1-5/8" O.D. (42mm) 4140 heat treated chromoly steel
More than 200% stronger than factory tie rod
Forged tie rod housing designed specifically for JK/JKU Wrangler
undefined Tie rod end joint incorporates same features found in TeraFlex ball joints, including 4140 chromoly ball/stud and 1045 carbon steel housing
Features adjustable rod end preload tension to ensure long-term durability
Tie rod end joint rotation is limited to 14 degrees of movement to minimize tie rod roll
Steering Stabilizer Relocation Mount Bracket Kit - HD Tie Rod (# 1123160)
Steering Stabilizer Relocation Mount Bracket Kit - HD Tie Rod (# 1123160)
Fits heavy-duty 1-5/8" or 42mm tie rod
6061-T6 aluminum clamp and forged 10.9 grade stud
Moves steering stabilizer up nearly 2.5" to help reduce damage to the stabilizer shaft or body
Repositions stabilizer to reduce "tie rod roll" associated w/ stabilizer misalignment
Notes:
Requires aftermarket wheels w/ 4.75" backspacing or less - or Offset Wheel Adapters (# 1055000) for stock wheels - NOT INCLUDED.
Install Time: 1.5 Hours
